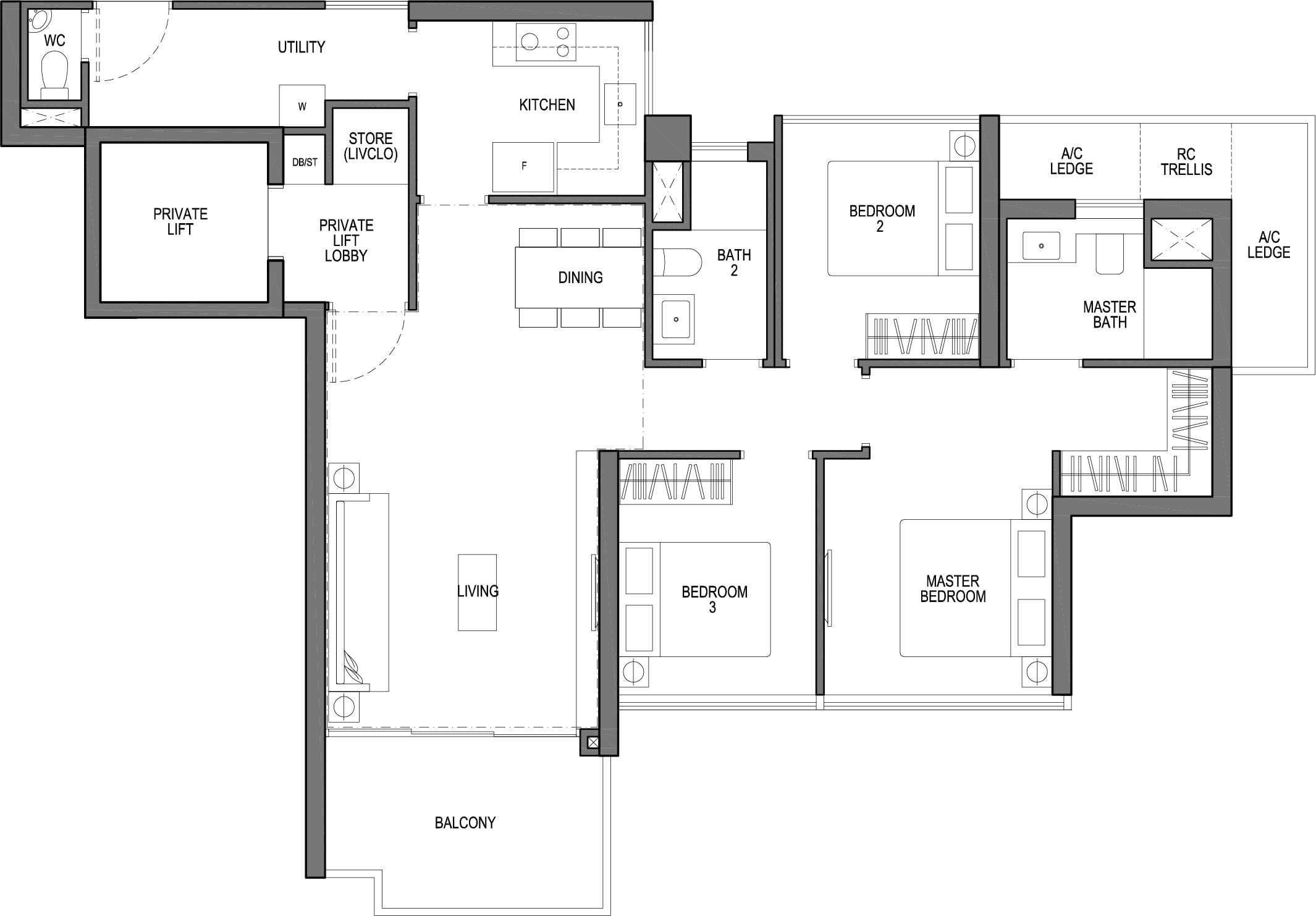

Privé Type C5/C5 (h)

Type C5
3 - bedroom Privé

55 SQM / 592 SQFT

#02 - 15 TO #13 - 15

#17 - 15 TO #26 - 15

#02 - 18 TO #13 - 18 (MIRROR UNIT)

#02 - 35 TO #13 - 35

Type C5 (h)
3 - bedroom Privé

137 SQM / 1475 SQFT

#27 - 15

Dotted line denotes void area for C5 (h)
(Area includes avoid area of 25 sqm)

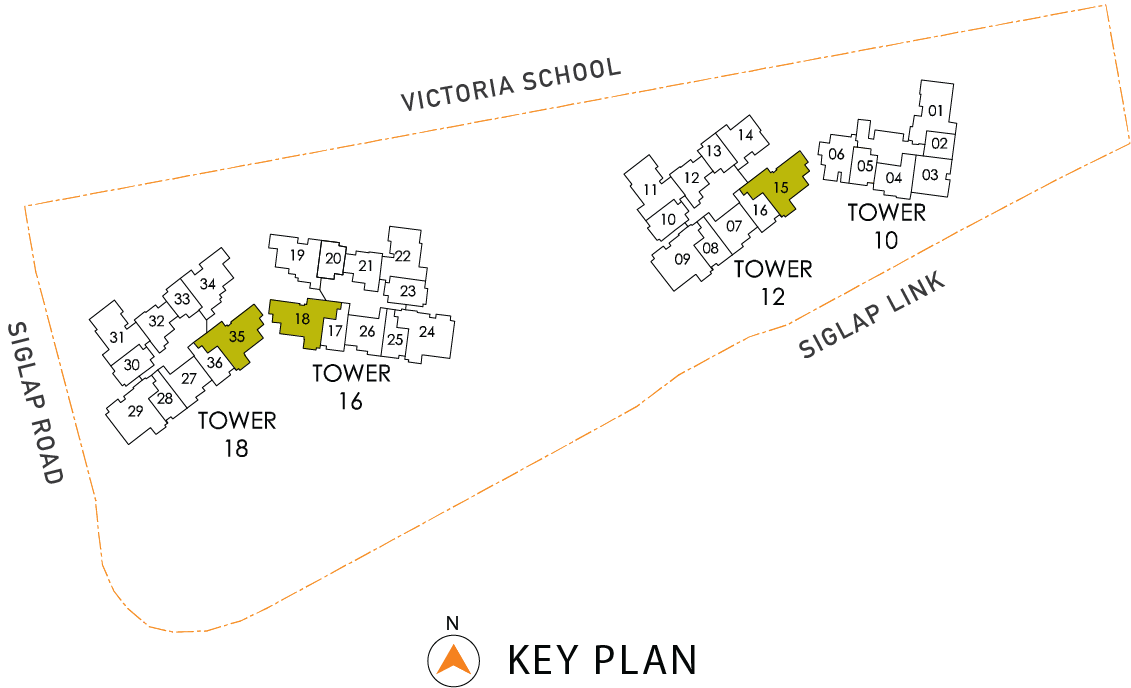

Area includes A/C ledge, balcony, PES and VOID area where applicable. RC Trellis is not part of strata area. Some units are mirror images of the apartment plans shown in the brochure. Please refer to key plans for orientation. The plans are subjected to change as may be approved by relevant authorities. All floor plans are approximate measurements only and are subjected to final survey. Abbreviation: A/C Ledge (Aircon Ledge), PES (Private Enclosed Space), DB (Distribution Board), STORE (Livclo), RC Trellis (Reinforced Concrete Trellis)
