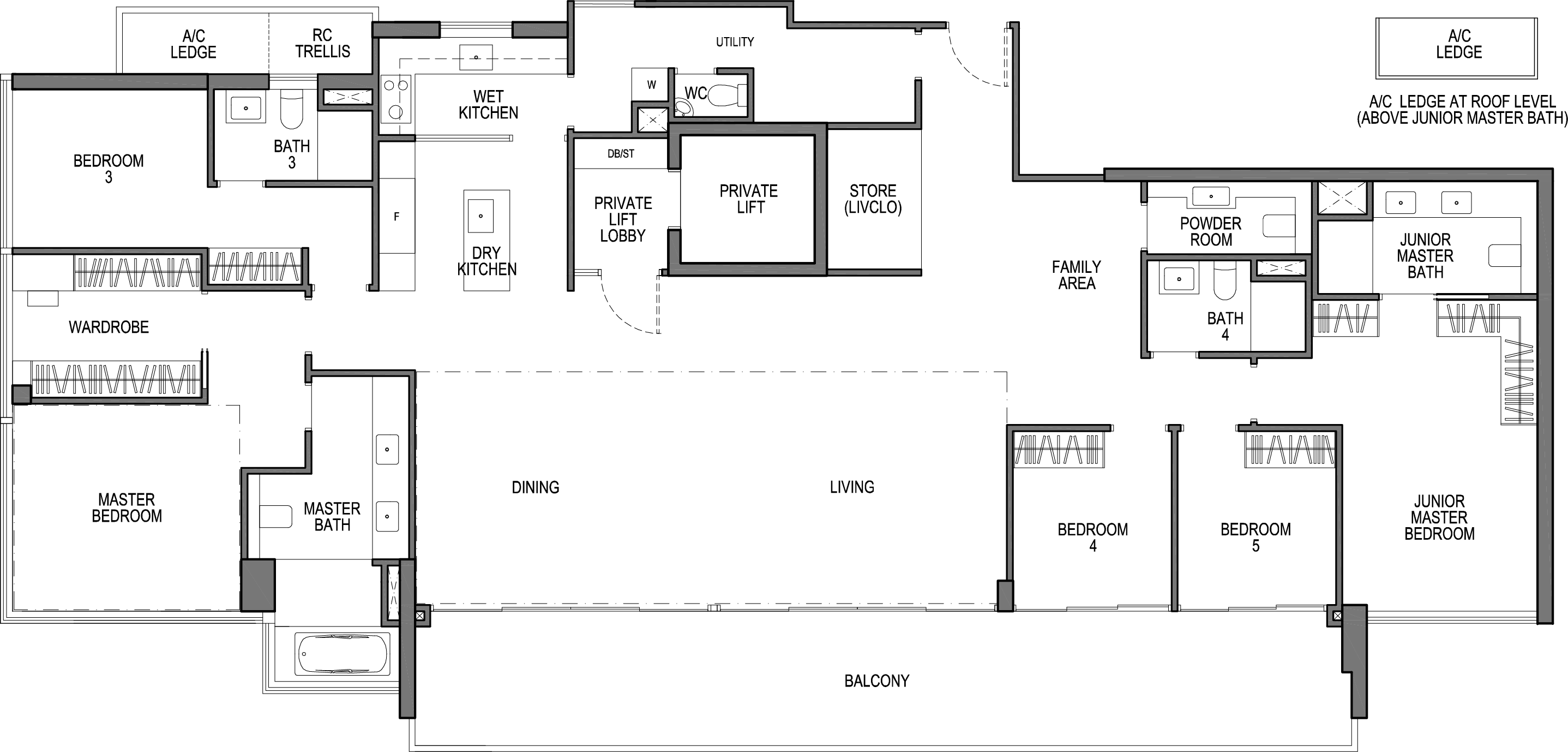

Penthouse

Type PH
5 - bedroom Penthouse

306 SQM / 3294 SQFT

#27 - 07

#27 - 24 (MIRROR UNIT)

#27 - 27

Dotted line denotes void area for PH
(area includes avoid area of 50 SQM)

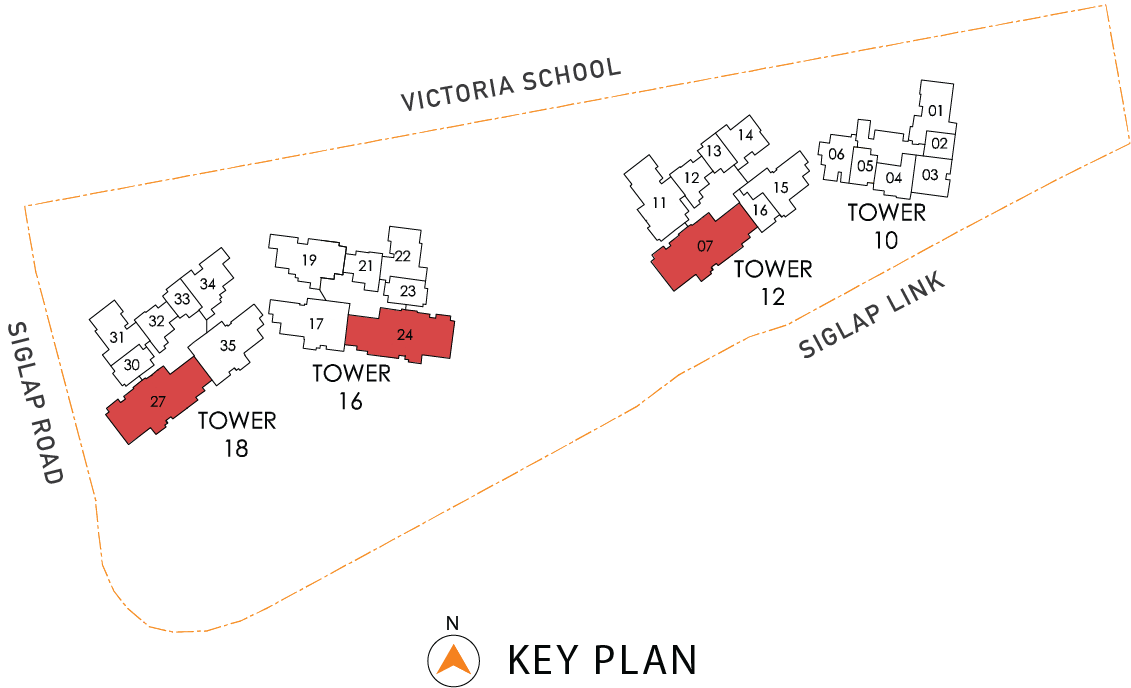

Area includes A/C ledge, balcony, PES and VOID area where applicable. RC Trellis is not part of strata area. Some units are mirror images of the apartment plans shown in the brochure. Please refer to key plans for orientation. The plans are subjected to change as may be approved by relevant authorities. All floor plans are approximate measurements only and are subjected to final survey. Abbreviation: A/C Ledge (Aircon Ledge), PES (Private Enclosed Space), DB (Distribution Board), STORE (Livclo), RC Trellis (Reinforced Concrete Trellis)
